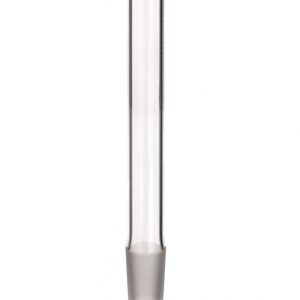

Inserts or adapters allow the connection of parts of apparatus with differently wide grinding openings.
Grindings can only have a few sizes (their dimensions are set by the standard), therefore
only a few types of adapters are needed. Extensions and elbows are used to connect different parts of the apparatus.
| Cat. No. | Code | d (mm) | SJ | Packaging (pcs) | l (mm) | SJ1 |
|---|---|---|---|---|---|---|
| 1632441509042 | 8127 | 13 | 12/21 | 10 | 56 | 14/23 |
| 1632441509053 | 8127 | 17 | 14/23 | 10 | 64 | 19/26 |
| 1632441509054 | 8127 | 22 | 14/23 | 10 | 67 | 24/29 |
| 1632441509055 | 8127 | 26 | 14/23 | 10 | 70 | 29/32 |
| 1632441509065 | 8127 | 26 | 19/26 | 10 | 78 | 29/32 |
| 1632441509075 | 8127 | 26 | 24/29 | 10 | 81 | 29/32 |
| 1632441509078 | 8127 | 40 | 24/29 | 10 | 96 | 45/40 |
| 1632441509080 | 8127 | 53 | 29/32 | 10 | 110 | 60/46 |
| 1632441509088 | 8127 | 40 | 29/32 | 10 | 98 | 45/40 |
| 1632441509090 | 8127 | 60 | 29/32 | 10 | 125 | 71/51 |
| 1632441509091 | 8127 | 62 | 45/40 | 10 | 133 | 71/51 |
