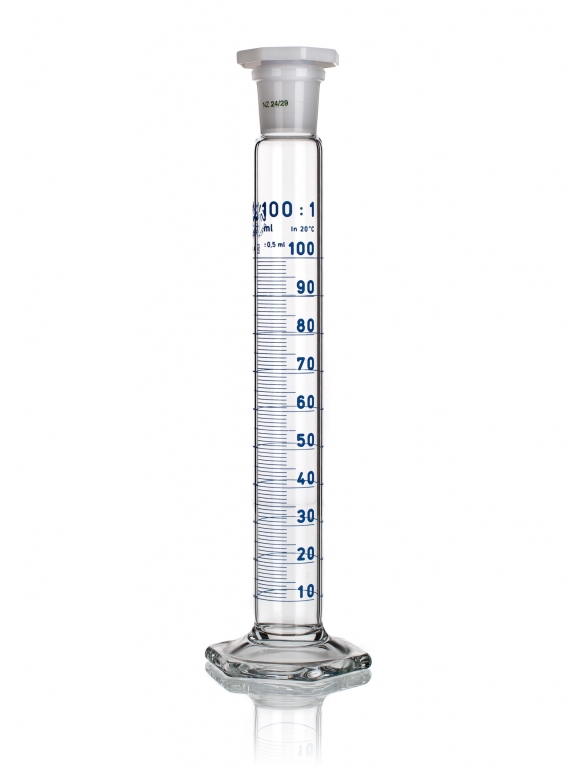

CYLINDER GRADUATED WITH SJ AND PLASTIC STOPPER, BLUE / BLAU GRADUATION, CLASS A
CYLINDER GRADUATED WITH SJ AND PLASTIC STOPPER, BLUE / BLAU GRADUATION, CLASS A

CYLINDER GRADUATED WITH SJ AND PLASTIC STOPPER, BLUE / BLAU GRADUATION, CLASS A

List of distributors

Alternatives

PRICE ON REQUEST

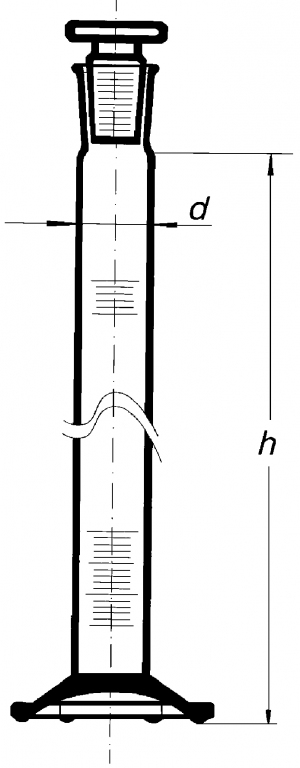

Code Number Capacity (ml) Permitted error (ml) Subdivision (ml) d(mm) h (mm) SJ Packing (pcs)
1632432630018 1652 AMPN 5 0,05 0,1 12,9 115 10/19 10
1632432630019 1652 AMPN 10 0,10 0,2 15,5 135 10/19 10
1632432630023 1652 AMPN 25 0,25 0,5 21,3 160 14/23 10
1632432630025 1652 AMPN 50 0,50 1,0 26,0 195 19/26 10
1632432630030 1652 AMPN 100 0,50 1,0 31,3 240 24/29 10
1632432630038 1652 AMPN 250 1,00 2,0 40,7 320 29/32 10
1632432630043 1652 AMPN 500 2,50 5,0 53,2 380 34/35 10
1632432630044 1652 AMPN 1000 5,00 10,0 67,0 465 45/40 4
1632432630046 1652 AMPN 2000 10,00 20,0 85,0 535 45/40 3
ISO4788
THE BIG HEXAGONAL BASE PROVIDES FOR STABILITY. THE UNIFORM THICKNESS OF THE WALL ELIMINATES THE WEDGE-ERROR OF THE READING. IN-CALIBRATION (FI LL-IN) AT THE REFERENCE TEMPERATURE +20°C. CLASS A OF ACCURACY. TYPICAL USE: THINNING OF SOLUTIONS, MIXING OF SEVERAL COMPONENT IN GIVEN RATIOS.
