Code Number
9500000922 Length - ball side 916mm - opposite side 880mm Width 310mm Curvature diameter 150mm Tube diameter 15mm Weight 0,75kg

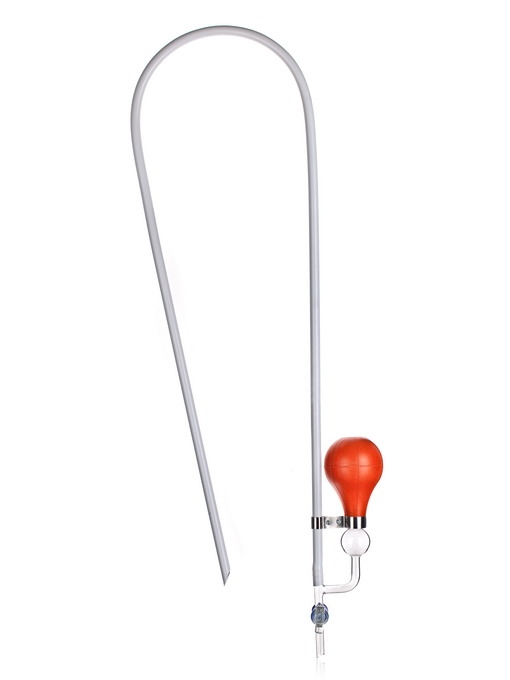

The siphon is used for the safe re-pumping of aggressive and other liquids from
transport bottles or barrels. The siphon is formed from a bent hardened-PVC
tube fitted on one end with a glass adapter with protective flask, a rubber
ball and a two-way glass cock. The volume of the ball enables, with a single
stroke, the sucking in of liquid which passes the overflow point and then
flows out spontaneously. The protective glass flask prevents the pumped liquid
from penetrating into the ball.
